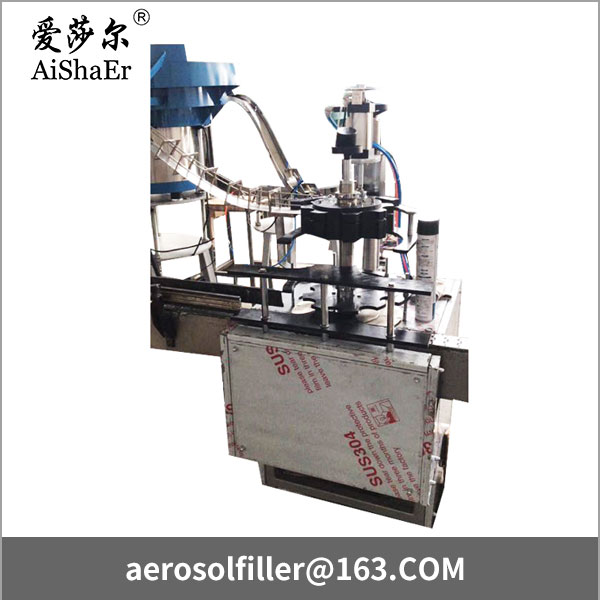

Automatic screw ring and big cap integrated pressing machine
This machine is equipped with two sets of sorting devices and conveying devices which can be freely and conveniently switched between the screw ring and the large cap. It is suitable for foaming filler manufacturer.
Technical parameter:
Caps specification | All kinds of flat-top caps and integral caps (without special cap) |
Arranging caps method | Electric air separator |
Applicable aerosol diameter(mm) | φ65 |
Capacity(cans/min) | Screw ring≥40cans/min big cap≥60cans/min |
Working pressure(V) | 380 |
Air pressure (Mpa) | 0.8 |
Air consumption(m3/min) | 1.2 |
Power (kw) | 0.18kw*2 0.25kw |
Features:
- Conveying the cap horizontally, feeding the cap automatically. Vibration plate sorts screw rings and large caps with non-interference, free switch.
- Reliable work, simple operation.
- It can automatically detect each monitoring station failure to remove the fault in time.
